SOLABS QM Reporting Infrastructure

BackEnd

The SOLABS QM10 software offers a rich infrastructure on which to build and publish reports. It leverages the power of third-party application such has Microsoft: Integration service, Reporting service and SharePoint.

Datasets

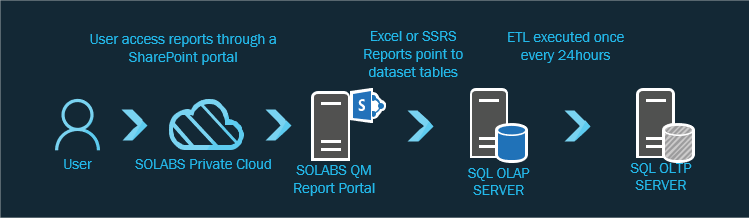

To simplify the access to data, we offer a set of datasets that exposes the system data from the system. We use the industry standard ETL approach to create a set of tables that contain valuable information to our clients. The datasets are refreshed, they pull the information from the SOLABS QM10 software, once every 24 hours.

For more information on fields provided in the core datasets offering please consult the document:

FS-SOL-001 - Appendix A - SOLABS QM Core Software Datasets V10.0.pdf

Reports

The datasets can be visualized through two different technology: Microsoft Excel and Microsoft SQL Server Reporting Services (SSRS) Reports.

Microsoft Excel

Microsoft Excel reports are stored in the SOLABS QM Report portal based on the Microsoft SharePoint technology. Reports can be viewed and refreshed from MS Excel or Excel services if you are a hosted client. From there on you can manipulate the data at will and save your report under a new name to keep it over time. We provide one MS Excel report per dataset table.

Core report list per section:

Section	Report Name
Document	DS Document Attribute value
	DS Document Metadata
	DS Document Type Inventory
	DS Document Workflow
Setup	DS EDI Contact
	DS EDI Equipment
	DS EDI Product
	DS EDI SMSP
	DS Setup Print Logo
	DS Setup Role Inventory
	DS Setup System Config
	DS Setup User Inventory
	DS Setup User Role Mapping
Tasks	DS Task End User Inventory
Training	DS Training Activities Inventory
	DS Training End User Activities
	DS Training End User Profiles
	DS Training Job Title Profiles
WorkFlow	DS WorkFlow
P0007	DS P0007 Tasks Data
P0044	DS P0044 Data
	DS P0044 Expanded Data
	DS P0044 Expanded Task Data
	DS P0044 GR-DailySummary Data
	DS P0044 GR-DailySummary Tasks Data
	DS P0044 ProcessTasks Decision
	DS P0044 Tasks Data
Process	DS Process Data

SSRS Reports

The SSRS reports are also stored in the SOLABS QM Reporting portal and comes with a variety of features that will fills your reporting needs.

The following features are available

Data alerts:	By creating data alerts on reports, you can monitor changes in report data and send data alert messages by email when report data follow rules that define data of interest to you and others, and at intervals that meet your business needs.
Subscriptions:	A report subscription is a report snapshot generated on a defined, scheduled time and delivered to the intended audience by the report server.
Report exports:	SSRS reports can be exported in multiple different files formats: XML, CSV, PDF, Excel, TIFF, Word and MHTMML.

Core report list per section:

Section	Report name
Document	Detail Report
	Printable Summary
	Summary with Doc Control Process Data
	Summary with Last Modifier Data
Training	Departmental Training Compliance by user
	Employee Training Compliance
	Employee Training History
	Job Title Training Requirements
	Training Compliance by Department
	Training Compliance Department Status by user
	Training Compliance Distribution
	Training Compliance User Distribution by Range

Reporting development tools

It is possible for clients to create their own reports using the reporting tools provided by Microsoft: Report Builder or Visual studio. SOLABS can provide a copy of your reporting table so you can build your reports based on the datasets table structure provided in the reporting offering.

How to access the SOLABS QM Report portal, access reports, create subscriptions, etc. : click here.

How to grant access to the SOLABS QM Report Portal : click here.

Information about the SSRS reports on the Document section: click here.
